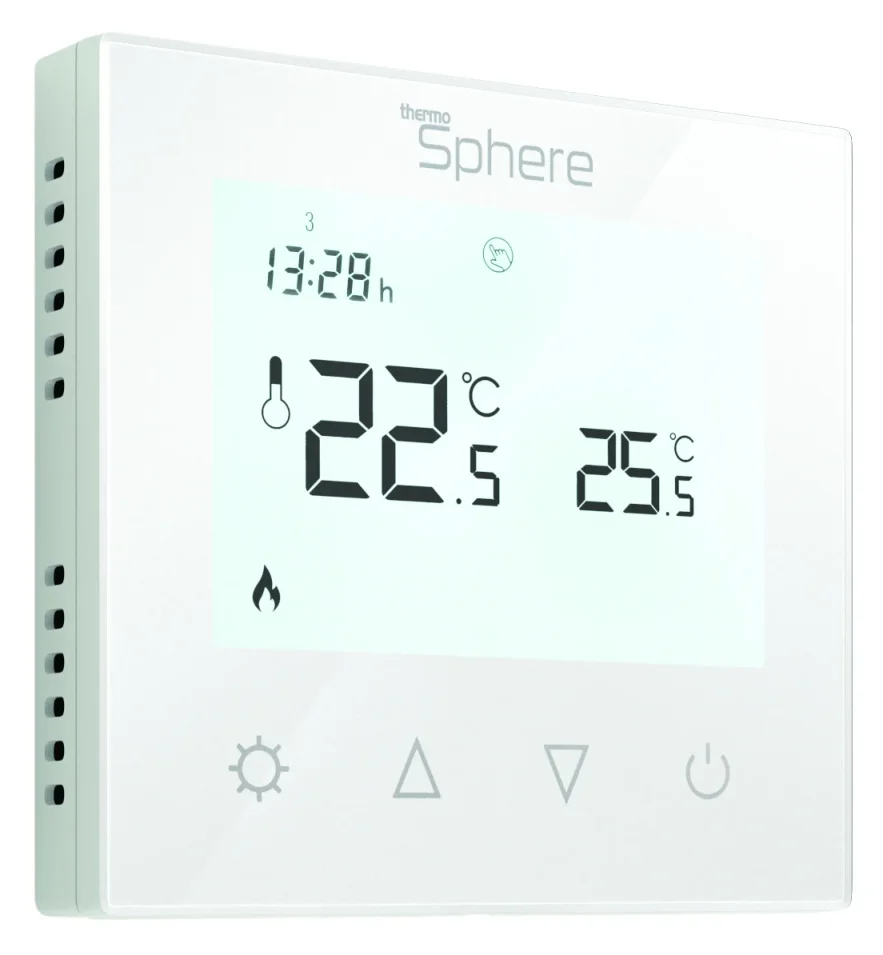

Thermosphere Programmable Control White

CONTROL | TOUCH | SINGLE
Thoughtfully designed and 100% reliable
Our programmable controls include energy saving features
to heat your home efficiently and keep you warm
and comfortable exactly when you want to be.
SCP-W-01 Manual White 85 x 85 x 46 (31mm in wall) Flexible scheduling (7 day, 6 events)

Automatic open window sensor

Energy saving adaptive start

Easy to use touch display

Ambient & floor temperature sensing mode

Automatic Open Window Sensor
Open window & door sensor

Your underfloor heating will automatically switch off when the programmable control senses an open window or door, to reduce heat loss.


Smart adaptive startup

The ThermoSphere programmable control learns how long it takes your floor to heat up to ensure your room is warm when you want it to be.
Technical data

Supply voltage 230V 50/60Hz
Maximum load 16A (3600W)
Backup storage EEPROM (1 year backup)
Temperature range 5 ~ 80°C (0.5°C increments)
Accuracy ±0.5°C
Sensor rating NTC 10k? @ 25°C
Consumption 2W
Warranty 3 years
Protection rating IP30
Width 85 mm
Height 85 mm
Depth 46 mm (31 mm in wall)
Network requirements Wireless hub (5000RF)






.
