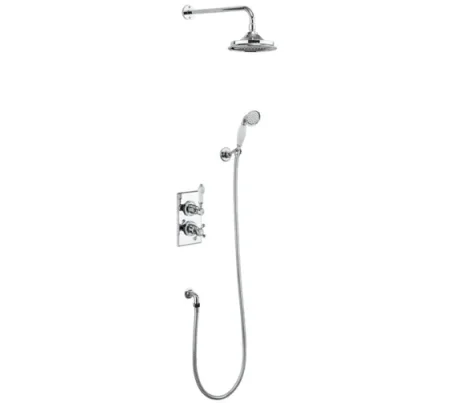

Burlington Trent 2 Outlet Concealed Divertor Shower

Burlington Trent Thermostatic 2 Outlet Diverter Valve With Shower Set The Burlington Trent Thermostatic 2 Outlet Diverter Valve with Shower Set is a versatile and practical unit, realized in the classic period style. The two outlets are easily selected via the integrated diverter valve, changing between the overhead unit and the separate hand shower quickly. Ceramic lever and Claremont handle provide control over water flow and temperature. To ensure a safe and comfortable showering experience, this unit includes a thermostatic cut-off to prevent scalding in the event of the cold water feed failing. The Airburst head with adjustable shower arm is sure to provide an invigorating and refreshing experience each time the user turns on the tap. The package also includes a handset, hose, wall outlet and adjustable wall bracket to complete your shower unit.Colour ChromeWeight in kg 4.73Warranty/Guarantee 10 YearsMaterial BrassValve Included YesValve Type ConcealedMinimum Operating Pressure (Bar) 3.0Water Saving YesHose Included YesHose Length 1500Flow Rates (l/min) 0.2 bar - 3.85, 0.5 bar - 4.45, 1 bar - 7.25, 2 bar - 10.85, 3 bar - 12.3Configuration Valve With Head And Shower KitTemperature Control ThermostaticDiverter Included YesHandset Included YesValve Size W 120 x H 259Shower Head Included YesShower Head Size Ø 180Comes in chrome finishTraditional designIncludes - TF2S + V16:2 outlet concealed thermostatic diverter valve6'' Airburst head390mm adjustable shower armWall outlet, 1500mm hose, adjustable wall bracket and handset with ceramic handleValve Specification:Body constructed from brassDual function valve with independent flow diverter and temperature controlsComes complete with traditional brass faceplate, claremont handle and ceramic leverAlso available with Anglesey and Birkenhead handle optional [See Option]Thermostatic safety - Temperature of your shower will not vary by more than +- 1°C - even if someone flushes a WC whilst you are showeringMinimum operating pressure required: 3.0 bar [HP-High Pressure]Size: Width 120mm x Height 259mm x Depth 82mmShower Head Specification:Diameter: 180mm [6"]9" and 12" head optional [See Option]Made from ABS or ABS/BrassAirBurst Built-in [more power, less water - saves water without ruining your shower]Features anti-limescale nozzles - simply rub your fingers over the silicon nipples, and the limescale is removed10 years of guarantee from the manufacturerFor complete size detail refer technical drawingDownload installation instruction PDF from technical tab.
